AR Technology

You’ve got the tools, we have a tracking solution!

Augmented Reality Metaversum Digital Twin Industry 4.0

MEASURE
Precisely and accurately measure spaces, objects and distances in your surroundings and VR spaces.
ANNOTATE
Leave comments in 3D for improved collaboration and efficiency.
INTERACT
Interact and manipulate virtual content in real-time. Resize, move, rotate, slice and dice.
ANIMATE
Bring your CAD to live, moving and animating moving parts, verifying your designs.
CREATE
Create new objects in AR adding to your designs.

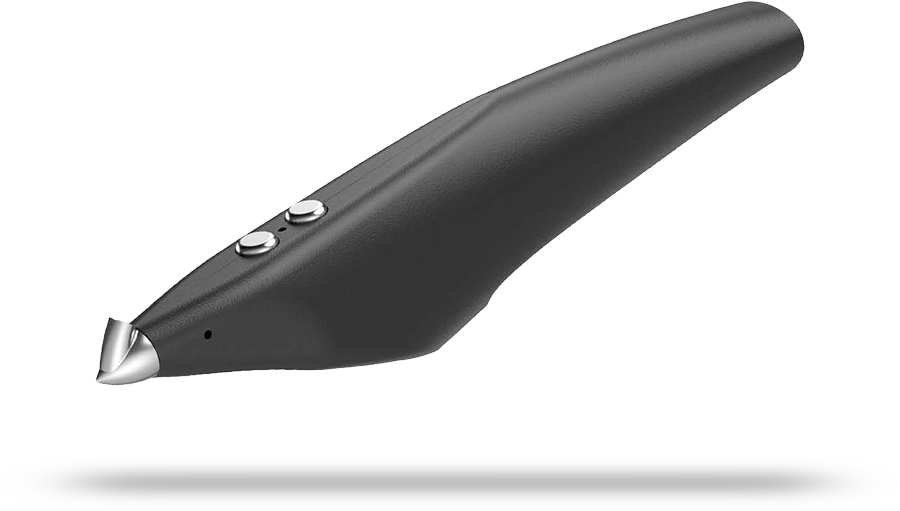

STYLUS XR

PRECISE INTERACTION
IN AUGMENTED REALITY

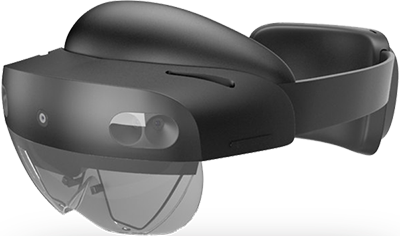

FOR MICROSOFT HOLOLENS II
AND OTHERS…

Link to Stylus XR SDK for Unity

Download Anleitung in Deutsch Download Guide In English

STYLUS XR
SPECIFICATION SHEET

TRACKING ACCURACY

Total pin-point accuracy up to 3mm

DURABLE

PLA-12 shock-absorbing housing
Premium steel tip (360° rotatable)
Industrial suitability and robustness

LATEST TECHNOLOGY

Microsoft HoloLens 2 compatible
USB-C Standard
Bluetooth 4.1 (upgradeable to 5.x)

BATTERY LIFE

STYLUS – 6 hours continuous use
Headmounted Unit – 6 hours continuous use
Fast Charging (35 min.)

REAL FINELINER

Integrated mount for real fineliner
Spring mechanism

STYLUS XR SDK

The Stylus XR can be integrated in all Unity apps running on HoloLens 2

DIMENSIONS

150mm x 23mm x 17mm (L x W x D, widest portions)
50g total weight
Body material PLA-12, tip material Titanium (TC-4)

BATTERY

3.7V, 350mAh, 1.3Wh, single cell
Lithium-Ion Rechargeable

TRACKING

0.4V IR-LED, 820nm range

CONNECTIVITY

USB-C (formerly Type-C) Std. rev. 2
Bluetooth 4.1 (hardware B/T 5.x compliant)
